Product Highlights
- Clear OLED screen with adjustable orientation
- Real-time SpO2, Pulse Rate and Perfusion Index readings
- Displays Pulse waveform and/or Bar graph
- Small and lightweight
Specifications
| Parameter | Specification |
|---|---|
| Display Type | OLED screen |
| Display Content | SpO2%, Pulse rate, Battery indicator, Perfusion Index, Pulse waveform, Pulse bar graph |
| Dimensions (L×W×H) | 63.4×36.0×33.6mm |
| Weight | 38.1g (without batteries) |
| Product Lifespan | 2 years |
| Power Supply | 2× 1.5V AAA batteries |
| Operating Voltage | DC 2.5-3V |
Measurement Specifications
SpO2:
- Measurement range: 0 to 100%
- Display range: 35 to 100%
- Resolution: 1%
- Accuracy: 70 to 100%: ±2%; 0 to 69%: unspecified
Pulse Rate:
- Measurement range: 25 to 250 bpm
- Resolution: 1 bpm
- Accuracy: ±2 bpm
- Pulse Intensity: Bar graph indicator
Perfusion Index:
- Measurement range: 0 to 50%
- Resolution: 1%
- Accuracy: 0.1% (0-1%); 1% (1-20%); >20% undefined
Detailed Features
- Portable Design: Compact size for convenient carry and use
- Clear Display: OLED screen provides clear visibility of readings
- Easy Operation: One-button operation for convenient use
- Multi-parameter Monitoring: Simultaneously monitors SpO2, pulse rate and perfusion index
- Accurate Data: Advanced sensor technology ensures reliable measurements
- Long Battery Life: Low power consumption design for extended use
- Wide Application: Suitable for both home and medical institution use
- Flexible Display: Adjustable display orientation for viewing from different angles
- Safe and Reliable: Made with medical-grade materials
- Cost-effective: Affordable price with stable performance
Product Images

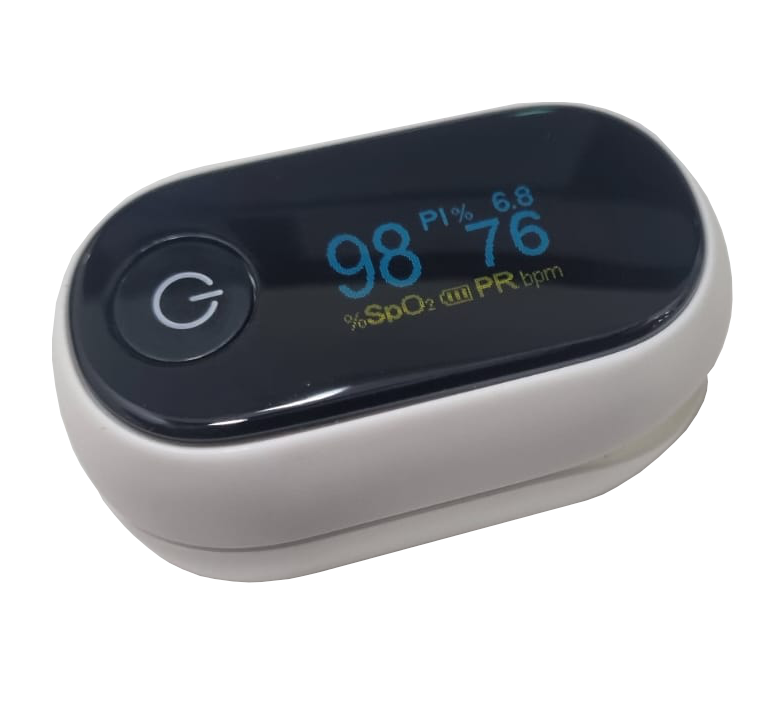

70B Fingertip Pulse Oximeter
Certification
Medical Device Certification
This product is approved by Singapore Health Sciences Authority (HSA), and is also widely approved by health authorities globally
Disclaimer
- Information provided herein is not intended as dispensing medical advice(s). User(s) should consult their doctor for any doubt or to seek further clarification prior to use
- User(s) is/are advised to refer to the product manual provided for more details and instructions of use. We shall not be held responsible for all information presented herein which is merely consolidated as a product overview
- All images presented herein are for illustration and visual purposes only and may vary from the final product delivered. Actual specifications, weight, and prices of the product may deviate
